Enhancing Gravure Economics: BOBST Unveils the MASTER 6003 to Combat Short-Run Pressures

The global packaging industry is currently navigating a period of profound transition. As brands increasingly favor agility and speed-to-market, the traditional landscape of gravure printing—historically defined by long-run stability—is being challenged by a shift toward shorter production cycles. To remain competitive, converters are under immense pressure to reduce material consumption, protect razor-thin margins, and optimize labor utilization.

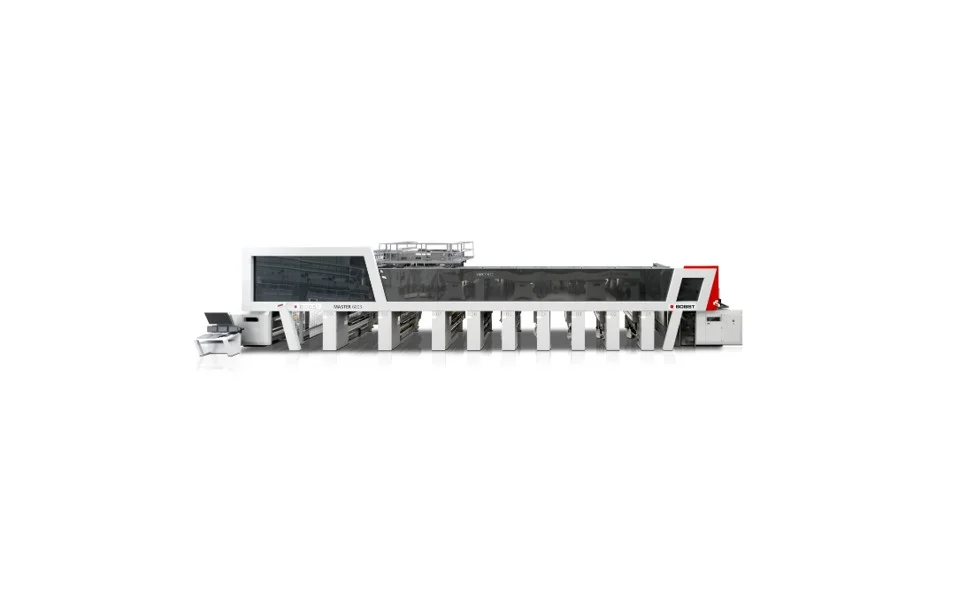

In response to these industry-wide headwinds, BOBST has introduced the MASTER 6003, a gravure press designed to modernize the printing process through advanced automation and resource-efficient engineering. By focusing on ink management, automated cleaning, and real-time data transparency, the MASTER 6003 seeks to redefine the economics of gravure for the modern packaging converter.

The Core Innovation: LeanPrint and Resource Efficiency

At the heart of the MASTER 6003’s value proposition is the "LeanPrint" inking system. Traditionally, gravure printing has been criticized for its high ink-in-circulation volume, which often leads to significant waste, high solvent emissions, and costly cleanup processes.

The LeanPrint system addresses these inefficiencies by fundamentally redesigning the path from the ink tank to the printing pan. By optimizing pipework geometry and the configuration of the ink delivery architecture, BOBST has achieved a 60% reduction in ink circulation volume compared to previous configurations.

Environmental and Financial Impact

The implications of this reduction are two-fold:

1. Solvent Reduction: With less ink exposed to the atmosphere, the evaporation rate is significantly curtailed. This results in a direct reduction in solvent consumption of up to 40%. This not only lowers the cost of raw materials but also facilitates a cleaner, safer, and more compliant production environment, reducing the burden on VOC (Volatile Organic Compound) abatement systems.
2. Waste Mitigation: Lower circulation volumes mean less residual ink must be disposed of or recycled at the end of a job, directly impacting the converter’s sustainability metrics and bottom-line waste costs.

Precision and Automation: The New Standard for Makeready

Efficiency in gravure is often won or lost during the makeready phase. The MASTER 6003 integrates several automated features aimed at minimizing human intervention, thereby reducing the potential for error and accelerating job changeovers.

Automated Cylinder Cleaning

One of the most labor-intensive tasks in a pressroom is the manual cleaning of cylinders. Dried ink in the microscopic cells of an engraved cylinder can compromise print quality, leading to costly rejects. The MASTER 6003 introduces an automated pre-washing system at every unit.

This system ensures that even the smallest engraved cells are thoroughly cleaned of dried ink residues. With cleaning cycles activated across all stations and completed in under one minute, the press significantly reduces the bottlenecks that typically occur between jobs. By automating this process, the press not only saves time but also creates a more operator-friendly environment by removing the need for manual scrubbing and exposure to cleaning chemicals.

Advanced Pan Positioning

The new pan movement mechanism on the MASTER 6003 provides rapid, smooth, and high-precision positioning of the ink pan relative to the printing cylinder. This allows for highly controlled, consistent ink transfer at high production speeds. Because the positioning is handled automatically by the press, it eliminates the need for time-consuming manual adjustments, ensuring that the print quality remains consistent from the first meter to the last.

Data-Driven Production: Real-Time Visibility

In the age of Industry 4.0, data is the most valuable tool for cost control. The MASTER 6003 integrates comprehensive ink measurement and energy monitoring systems, providing operators with unprecedented visibility into their resource consumption.

Integrated Ink Measurement

Using sophisticated pressure measurement devices, the press offers real-time diagnostics displayed on a dedicated HMI (Human-Machine Interface) page. Operators can monitor:

• The exact amount of ink consumed during a specific job.
• The volume of ink currently in circulation.
• The amount of ink remaining in the prepared supply.
• Estimates of the ink required to complete a pending run.

This transparency allows for precise ink management, preventing the common practice of "over-preparing" ink, which leads to waste. Furthermore, this data provides the traceability required by modern regulatory frameworks and brand-owner reporting requirements, proving that the converter is managing their resources sustainably.

Energy and Compressed Air Monitoring

Beyond ink, the MASTER 6003 tracks electrical power and compressed air usage. By providing real-time data, the press allows management to identify inefficiencies early—such as air leaks or high-energy usage spikes—enabling proactive maintenance and energy-saving measures. This granular insight is critical for converters striving to reduce their carbon footprint and lower operational overheads.

Supporting Infrastructure: The Auxiliary Trolley

The logistical aspects of a pressroom—often overlooked—are addressed by the redesigned auxiliary trolley. Handling ink tanks during a job change is a common source of physical strain and downtime. The new trolley design is barrier-free and compact, allowing for tank removal from either direction.

A built-in reference system allows for the precise positioning of the cylinder based on the job’s repeat length, removing the need for additional manual operations during the cylinder-blocking process. The floor-level support position minimizes the physical effort required by operators, reducing fatigue and improving the safety of the working environment.

Perspectives from R&D: The Philosophy of Evolution

Davide Rossello, Process R&D Manager for Gravure at BOBST, emphasizes that the MASTER 6003 was not created to force a paradigm shift in how operators work, but rather to evolve the proven strengths of gravure technology.

"Converters are seeking ways to improve efficiency and control costs, but without adding complexity to their workflow," Rossello explains. "With the new MASTER 6003, we have focused on evolving a proven gravure technology with solutions that reduce consumption, automate routine processes, and provide greater visibility of production. The press delivers on a simple objective: to improve the economics of the gravure process, without asking the customers to change the way they work."

This philosophy underscores the design of the MASTER 6003. By integrating advanced automation into the existing gravure workflow, BOBST aims to lower the barrier to entry for high-efficiency production, ensuring that the process remains viable in an increasingly digital-first packaging market.

The Strategic Implications for Converters

The introduction of the MASTER 6003 comes at a critical juncture for the packaging industry. As run lengths shorten and the demand for rapid, high-quality, and sustainable packaging increases, the economics of printing are being scrutinized more than ever before.

1. Competitive Advantage through Reduced Waste

By reducing ink circulation by 60% and solvent consumption by 40%, the MASTER 6003 provides a distinct competitive advantage. In a market where raw material costs are volatile, minimizing the volume of consumables required per 1,000 meters of substrate can result in significant annual savings.

2. Capacity Expansion

The automation of cleaning and cylinder handling effectively increases the "net" capacity of the press. By reducing the downtime associated with job changeovers and manual cleaning, converters can squeeze more billable hours out of a single production day. This increased capacity allows companies to take on shorter, higher-margin jobs that were previously deemed unprofitable due to the overhead costs of the gravure process.

3. Regulatory Readiness

With governments and brand owners demanding more stringent documentation of environmental impact, the integrated reporting features of the MASTER 6003 are an essential tool. The ability to generate accurate reports on resource usage, energy consumption, and waste levels puts the converter in a strong position for future audits and sustainability certifications.

Conclusion: A Future-Proofed Gravure Process

The MASTER 6003 represents a thoughtful approach to industrial design. It acknowledges that gravure is a mature, high-quality printing process that, when optimized correctly, remains superior to many alternatives for high-volume packaging applications. By stripping away the inefficiencies of the past—excessive ink volumes, manual cleaning bottlenecks, and lack of data visibility—BOBST has provided a pathway for the gravure process to remain the "gold standard" for quality, even as market demands trend toward shorter, more frequent production runs.

For the modern converter, the MASTER 6003 is not merely a new press; it is a financial and operational tool designed to improve margins and sustainability. By merging mechanical excellence with digital intelligence, the press ensures that the gravure industry is well-positioned to meet the challenges of the coming decade. As the industry moves toward a more automated and data-transparent future, the MASTER 6003 provides the agility required to thrive in a demanding, fast-paced global market.
